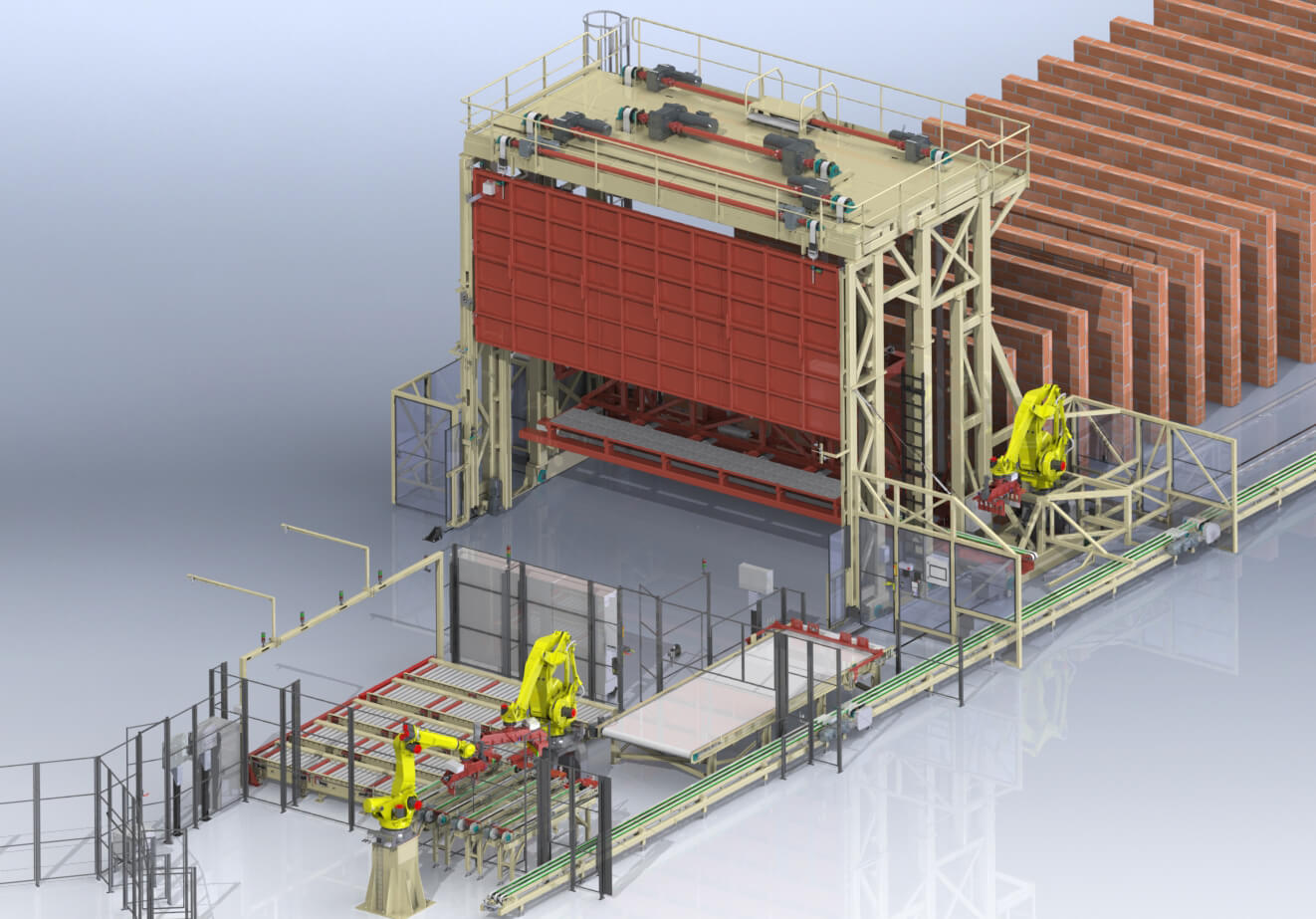

Modular robotic system
The optimum intermediate solution for structural brick walls, with flexible extension options
Intelligent use of the latest robotics and control technologies means that bricks or blocks and accessories (lintels, etc.) can be fed and positioned automatically and precisely, aligned in frames or by combining products of different lengths.
If required, products can be cut to the desired length using waterjet or dry cutting technology.
This increased degree of automation translates into a further reduction in personnel costs and a consistent output throughout the manufacturing process.
Machine data
- Type of building materials: clay bricks, sand-lime blocks, concrete blocks, aerated concrete blocks
- Joint: mortar or glue
- Production output: 250 m² per 8-hour shift
- Wall thickness: 9 - 50 cm
- Maximum wall height: 3.5 m
- Maximum wall length: 12 m
